Schneider

EVlink Home 7.4kW

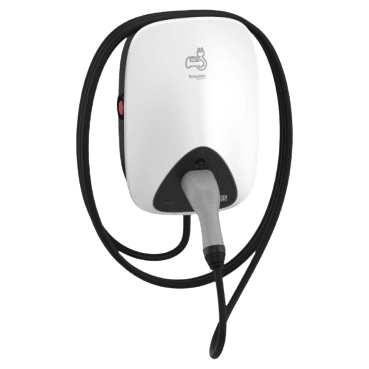

Name: EVlink Home 7.4kW
Brand: Schneider
Price: 1462 AUD
Availability: InStock

Discontinued model: Schneider Australia lists EVlink Home Smart as discontinued and recommends Schneider Charge as its replacement.

Estimated charger price

around $1,462

Estimated installation

around $700–$1,500

Typical installation estimate for a straightforward home installation. Longer cable runs, switchboard upgrades, three-phase work, trenching or other site requirements can increase the cost.

FIND MY CHARGER Back to chargers

Overview

The Schneider EVlink Home Smart 7.4kW is a discontinued single-phase home charger with Wiser connectivity, OCPP 1.6J, IP55 / IK10 protection and optional anti-tripping control. Schneider Australia lists the EVH4A07NC reference as discontinued and recommends Schneider Charge as its replacement. HomeChargerMatch keeps this page as a legacy reference for existing owners and any remaining stock.

Key highlights

Discontinued model

7.4 kW single-phase / 32 A

Wiser app connectivity

OCPP 1.6J

Optional Anti-tripping Module

IP55 / IK10

2-year warranty

Best for

Existing EVlink Home Smart owners checking product information
Buyers considering remaining stock after confirming availability and warranty with the seller

Not ideal for

— Buyers wanting Schneider's current home-charging product range

Using this charger at home in Australia

On a suitable installation, this charger can provide up to 7.4 kW. Actual charging speed also depends on the vehicle's onboard AC charging limit and the configured site capacity.

Where supported and correctly configured, load management can reduce EV charging power when other household loads increase, helping keep total demand within the configured site limit.

OCPP support allows the charger to communicate with compatible OCPP charging-management platforms. OCPP support by itself does not guarantee integration with a home battery, solar inverter, electricity tariff or every third-party platform.

The manufacturer lists an IP55 enclosure rating for this charger. The final mounting location should follow the manufacturer's installation requirements and be confirmed by the installer.

A dedicated home EV charger should be installed by a licensed electrician. The installer should confirm the circuit design, switchboard capacity, protection requirements and any applicable local electricity-network requirements.

Key specifications

Estimated installationaround $700–$1,500

Power7.4 kW

PhaseSingle-phase

Cable5m tethered

Weather ratingIP55

Warranty2 years

Solar support—

OCPPYes

Load balancingOptional — requires EVlink Home Anti-tripping Module

App controlYes

Charger prices are estimates based on publicly available pricing we could verify and may change with retailer offers, promotions and product configuration. Installation is additional.

Typical installation estimate for a straightforward home installation. Longer cable runs, switchboard upgrades, three-phase work, trenching or other site requirements can increase the cost.
