Sungrow

AC22E-01

Name: AC22E-01
Brand: Sungrow
Price: 999 AUD
Availability: InStock

A connected AC charger with OCPP, load-management support and solar-energy integration for compatible Sungrow energy systems.

Estimated charger price

Approx. from $999

Estimated installation

around $700–$1,500

Typical installation estimate for a straightforward home installation. Longer cable runs, switchboard upgrades, three-phase work, trenching or other site requirements can increase the cost.

FIND MY CHARGER Back to chargers

Overview

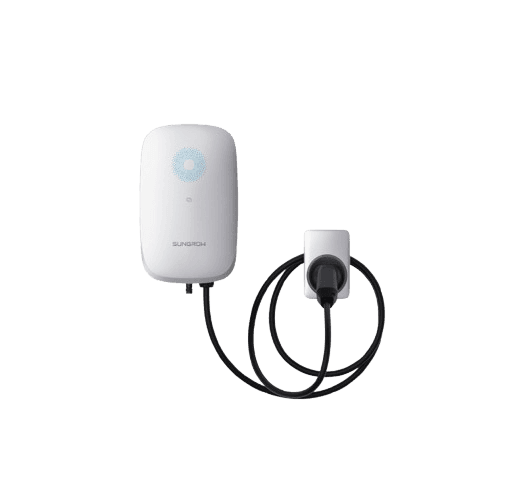

The Sungrow AC22E-01 is a connected AC charger with up to 22 kW charging capability and current Australian support for 7, 11 and 22 kW configurations. Sungrow documents OCPP 1.6J, app control, load management and balancing, IP65 protection and solar-energy optimisation when integrated with a compatible Sungrow Hybrid Solution. The tethered configuration uses a 5 m standard cable, with a 7 m option available., Wi-Fi, 4G and RS485 connectivity, with optional MID metering.

Key highlights

7 / 11 / 22 kW charging configurations

Type 2 charging

7 m output cable in current Australian solution documentation

OCPP 1.6J

Load management and balancing

Solar-energy integration with compatible Sungrow Hybrid Solution

App control

Wi-Fi, 4G and RS485

Optional MID meter

IP65 / IK10

3-year Australian warranty

Best for

Homes using compatible Sungrow solar or hybrid equipment
Users wanting OCPP 1.6J and app-based charging control
Installations needing configurable AC charging output
Homes where compatible Sungrow load management will be installed

Not ideal for

— Solar optimisation depends on compatible Sungrow energy-system integration.
— Available charging power remains subject to the home's electrical supply, charger configuration and the vehicle's onboard AC charger.

Using this charger at home in Australia

This charger supports higher AC charging speeds where both your home's electrical supply and your EV's onboard AC charger allow. Confirm your home's phase support with a licensed electrician, and check your EV's maximum AC charging capability.

Where the charger and required monitoring equipment support solar-aware charging, the system can adjust EV charging in response to available solar generation. The exact behaviour depends on the charger, metering or sensors, inverter setup and configuration.

Where supported and correctly configured, load management can reduce EV charging power when other household loads increase, helping keep total demand within the configured site limit.

OCPP support allows the charger to communicate with compatible OCPP charging-management platforms. OCPP support by itself does not guarantee integration with a home battery, solar inverter, electricity tariff or every third-party platform.

The manufacturer lists an IP65 enclosure rating for this charger. The final mounting location should follow the manufacturer's installation requirements and be confirmed by the installer.

A dedicated home EV charger should be installed by a licensed electrician. The installer should confirm the circuit design, switchboard capacity, protection requirements and any applicable local electricity-network requirements.

Key specifications

Estimated installationaround $700–$1,500

Power22 kW

PhaseSingle + three-phase

Cable5 m tethered cable standard, with 7 m option

Weather ratingIP65

Warranty3 years

Solar supportSurplus solar

OCPPYes

Load balancingYes

App controlYes

Charger prices are estimates based on publicly available pricing we could verify and may change with retailer offers, promotions and product configuration. Installation is additional.

Typical installation estimate for a straightforward home installation. Longer cable runs, switchboard upgrades, three-phase work, trenching or other site requirements can increase the cost.
